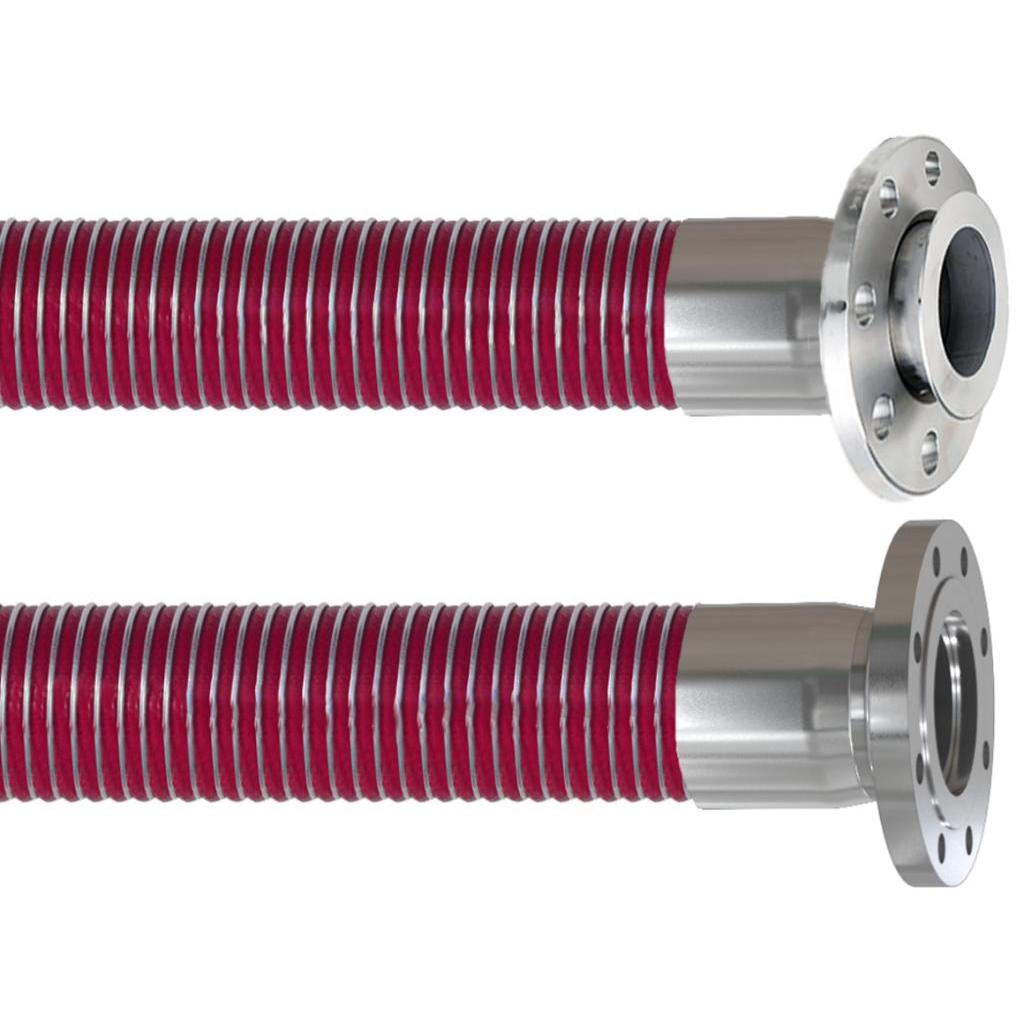

10 X 20 MAROON GG BIOFUEL COMP ASM SSFX FL
2C04-1000-0240-SSFX-FL
Options
UOM EA
Description
10 X 20 MAROON GALVANIZED WIRE / GALVANIZED WIRE BIOFUEL COMPOSITE ASM SSFX FL
Additional information
| Tube | Polypropylene Inner Film |
|---|---|
| Reinforcement | Spiral Ply High Density UHMW Film |
| Cover | Spiral Ply High Density UHMW Film Polypropylene Inner Film Polyvinyl Coated Polyester Fabric |
| Temperature Range (°F) | -40 to 212 |
| Working Pressure (psi) | 250 |
| Total Assembly Weight (lb) | 285 |
| OAL Assembly (ft) | 20 |
| End 1 | ANSI 150# Fixed Flange 316 Stainless Steel |
| End 2 | ANSI 150# Floating Flange 316 Stainless Steel |
