10 X 20' BL GA PETRO COMPO ASM CS FX FL
Product Code: 2C02-1000-0240-CSFX-FL
2C02-1000-0240-CSFX-FL
Options
2C02-200-0240-CSFX-FL
2C02-200-0240-SSFX-FL
2C02-300-0240-CSFX-FL
2C02-300-0240-SSFX-FL
2C02-400-0240-CSFX-FL
2C02-400-0240-SSFX-FL
2C02-600-0240-CSFX-FL
2C02-600-0240-SSFX-FL
2C02-800-0240-CSFX-FL
2C02-800-0240-SSFX-FL
2C02-1000-0240-CSFX-FL
2C02-1000-0240-SSFX-FL
2C02-1200-0240-CSFX-FL
2C02-1200-0240-SSFX-FL
UOM EA
Description

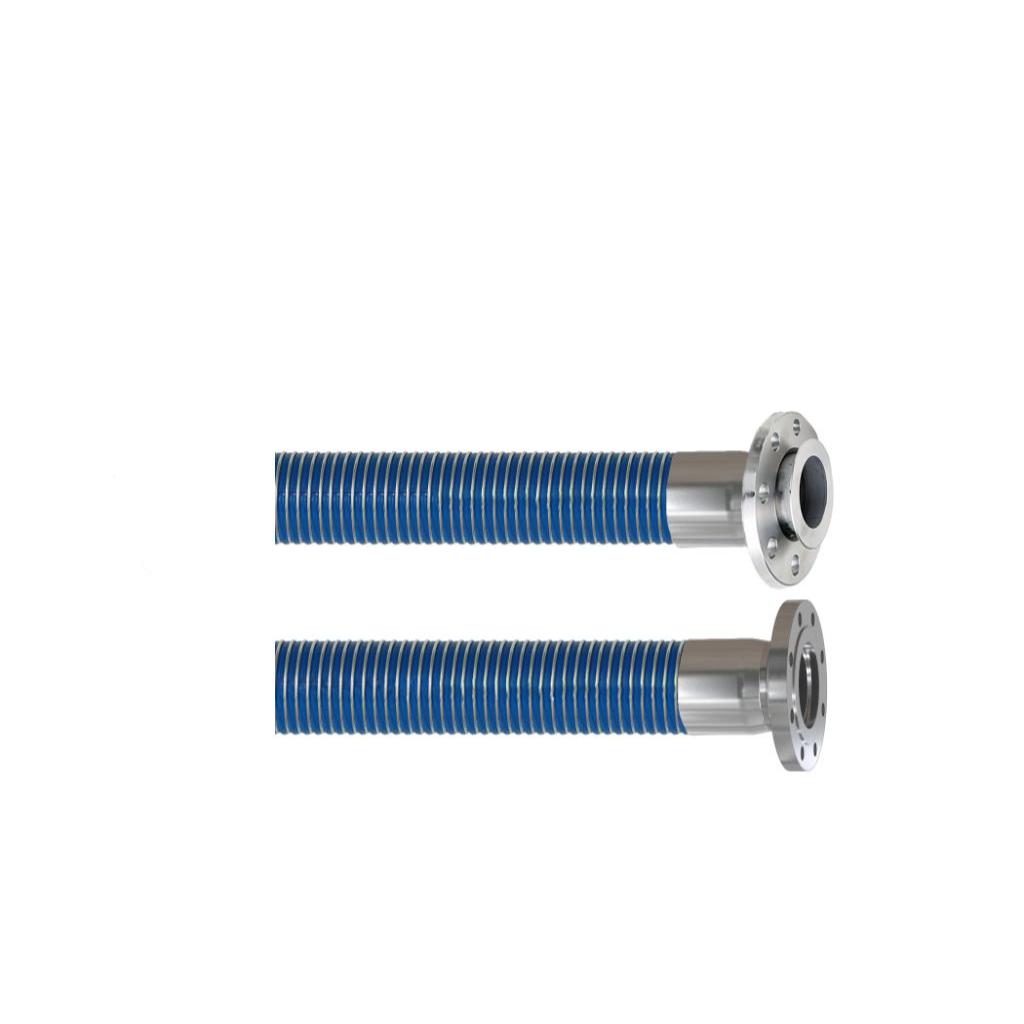

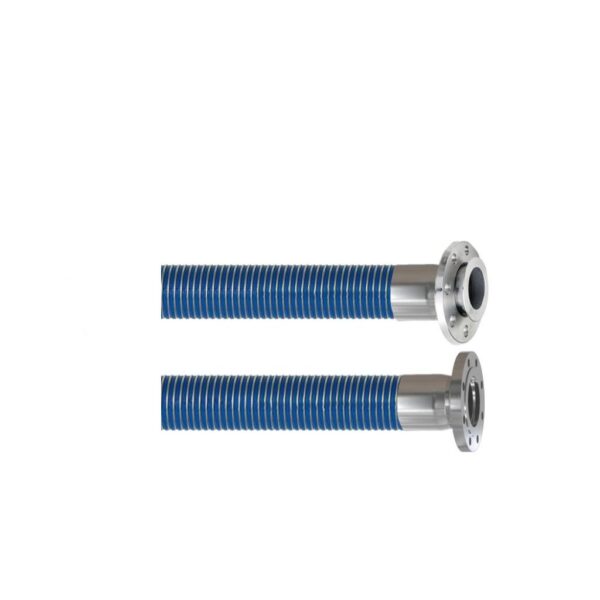

10 X 20′ BLUE GA PETROLEUM COMPOSITE ASM CARBON STEEL FIXED FL
Additional information
| Tube | Polypropylene Inner Film |
|---|---|
| Reinforcement | Spiral Ply High Density UHMW Film |
| Cover | Spiral Ply High Density UHMW Film Polypropylene Inner Film Polyvinyl Coated Polyester Fabric |
| Temperature Range (°F) | -40 to 212 |
| Working Pressure (psi) | 250 |
| Total Assembly Weight (lb) | 285 |
| OAL Assembly (ft) | 20 |
| End 1 | ANSI 150# Fixed Flange Plated Steel |
| End 2 | ANSI 150# Floating Flange Plated Steel |
