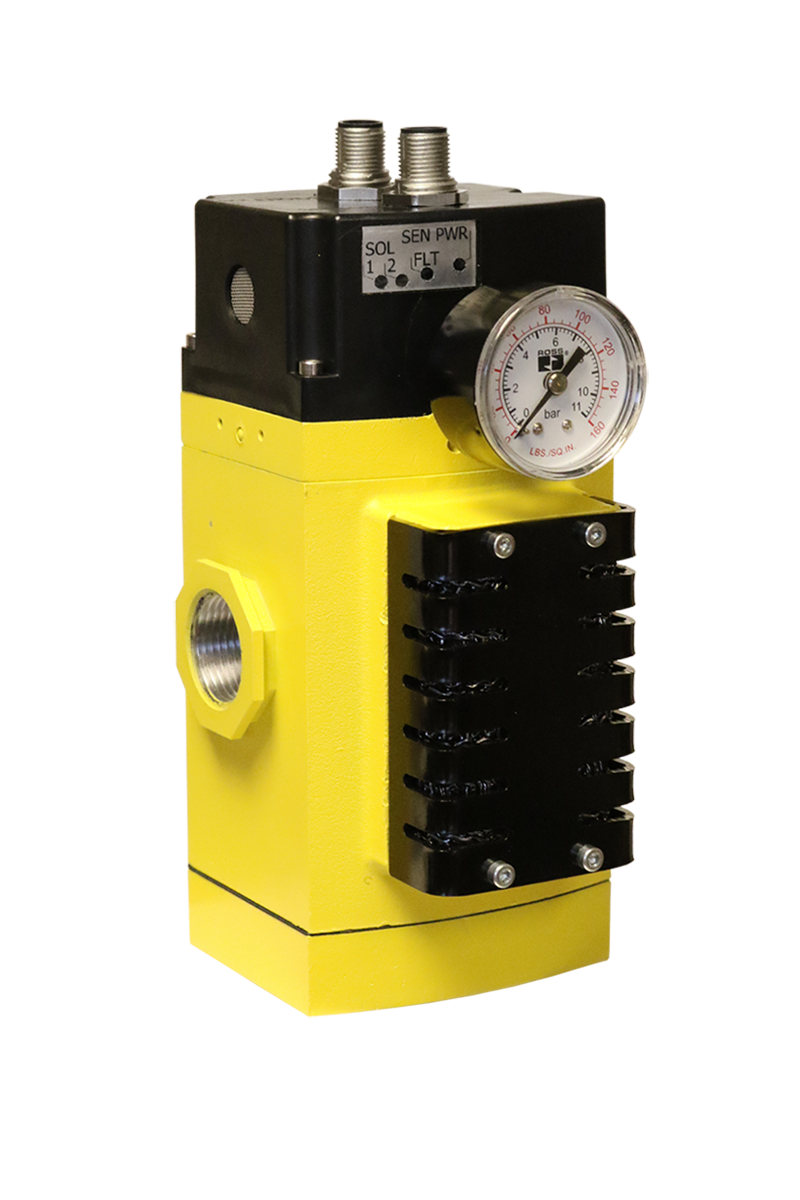

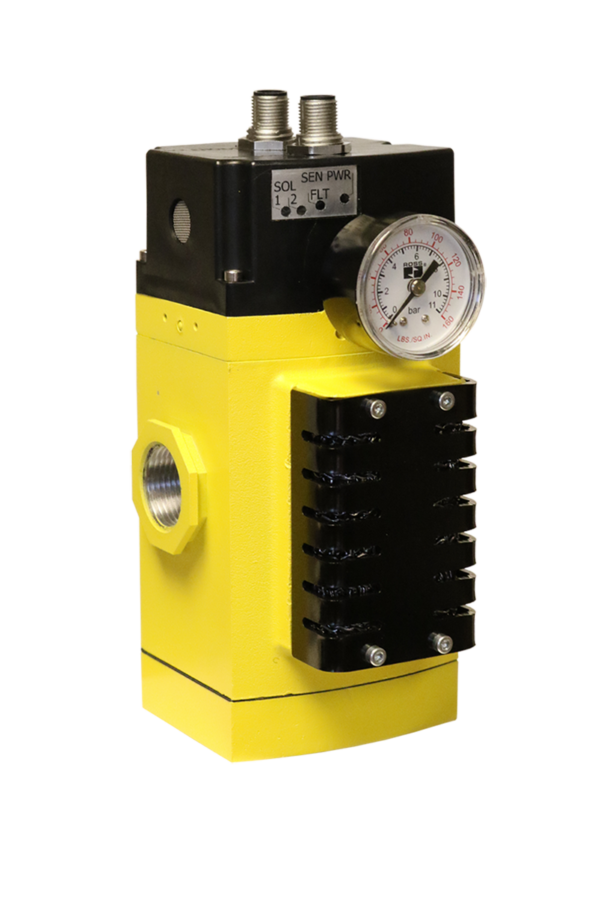

M35 Series Double Valve M35X50NAEXAAGA
Description
• Redundant control can achieve Category 4, PL e, when used with proper safety controls
• Each valve element in the M35 Series is equipped with a solid state pressure sensor for external monitoring
• Monitoring both of these sensors on each actuation and de-actuation of the M35 Series valve provides a diagnostic coverage up to 99%.
• Poppet design that is dirt tolerant, wear compensating for quick response and high flow capacity
• PTFE backup piston rings enhances valve endurance enabling operation with or without in-line lubrication
• Optional Soft-Start Module on energization, allows outlet pressure to increase at a slower rate until it reaches approximately 50% of inlet pressure, at which point the valve will then open fully to finish filling the system at full rate
• Modular port connection allows modular connection to Air Entry System (Lockout Valve, FRLs)
• LED Indicators provides visual display of valve status and aids troubleshooting
• Include built-in silencer module or threaded flange for remote exhaust
• SISTEMA Library available for download
Additional information
| Actuation | Electrical |
|---|---|
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Basic Size | 8 |
| CE Certification | Yes |
| CSA/UL Certification | Yes |
| Construction | Dual Poppet |
| DGUV Certification | Yes |
| EAC Declaration | Yes |
| Flow Media | Compressed air according to ISO 8573-1 Class 7:4:4 |
| Feedback | PNP Solid State Pressure Sensors |
| Feedback Connection | 5-pin M12 |
| Feedback Rating | Contacts – 5 amps at 250 volts AC, or 5 amps at 30 volts DC |
| Height | 7.03 in (178.7 mm) |
| Inlet Size | 3/4" |
| Length | 3.15 in (80.0 mm) |
| Lockout | Not Included |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Monitoring | External |
| Mounting Type | In-line |
| Operating Pressure | 150 psi (10 bar) |
| Outlet Size | 3/4" |
| PL Rating | PL e |
| Pilot Type | Internal |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Ports 1-2 Flow | 4.3 Cv (4231 Nl/min) |
| Ports 2-3 Flow | 7.57 Cv (7449 Nl/min) |
| Power Consumption | 2.0 watts |
| Pressure Gauge | Analog |
| Reset | Automatic |
| Safety Category | Category 4 |
| Safety Integrity Level | SIL 3 |
| Seal Material | Buna-N |
| Series | M35 |
| Soft Start | Not Included |
| Solenoid Connection | 5-pin M12 |
| Solenoid/Sensor Pin Configuration | AA |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Function | Redundant 3/2 Single Solenoid |
| Voltage | 24 VDC |
| Weight | 4.3 lb (2.0 kg) |
| Width | 4.30 in (109.3 mm) |
