6" FRAC SOLUT TRANS 150 PSI
Product Code: 60092-600

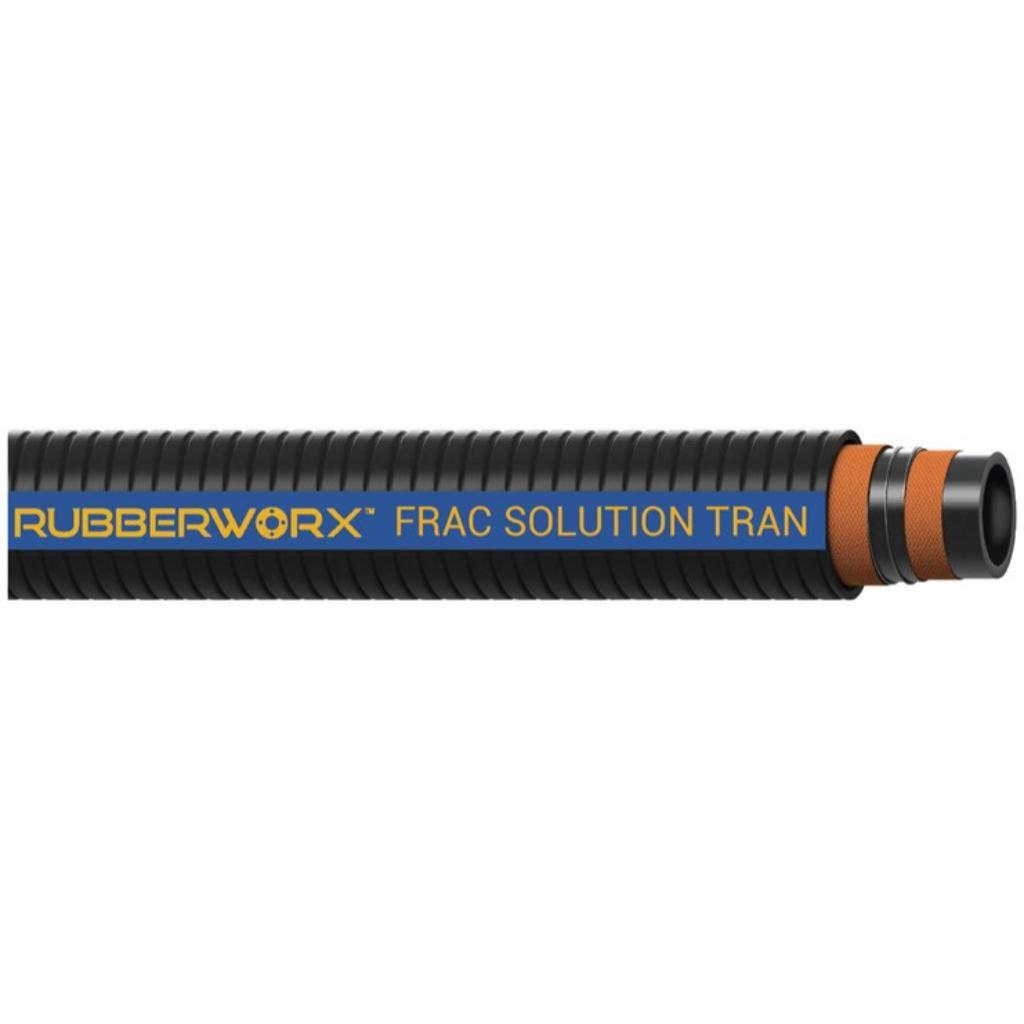

6″ FRAC SOLUT TRANS 150 PSI
UOM FT
Description
Corrugated Frac Solution Transfer 150 PSI – Heavy duty rubber frac solution transfer hose with steel helix. Designed for use in oilfields, not for refined fuels.
Additional information
| Tube | Nitrile/SBR Blend Black |
|---|---|
| Reinforcement | Spiral Ply Textile Steel Wire |
| Vacuum Reinforcement | Steel Wire |
| Cover | Black Nitrile/SBR Blend Corrugated |
| Temperature Range (°F) | -22 to 180 |
| Hose ID (Decimal Inch) | 6 |
| Hose Nominal OD (Decimal Inch) | 6.81 |
| Working Pressure (psi) | 150 |
| Bend Radius (Decimal Inch) | 24 |
| Vacuum Pressure (inHg) | 29 |
| Hose Weight (lb/ft) | 4.97 |
