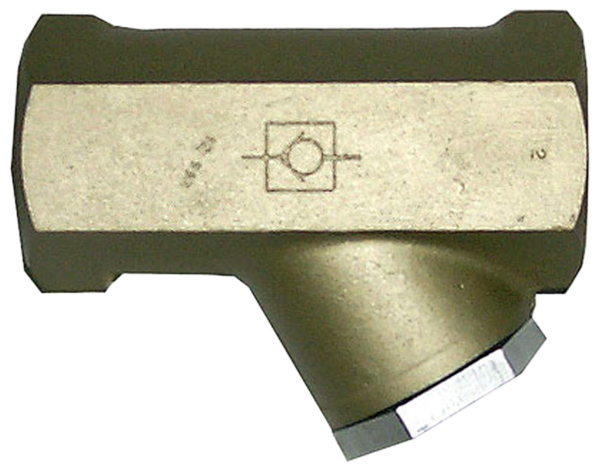

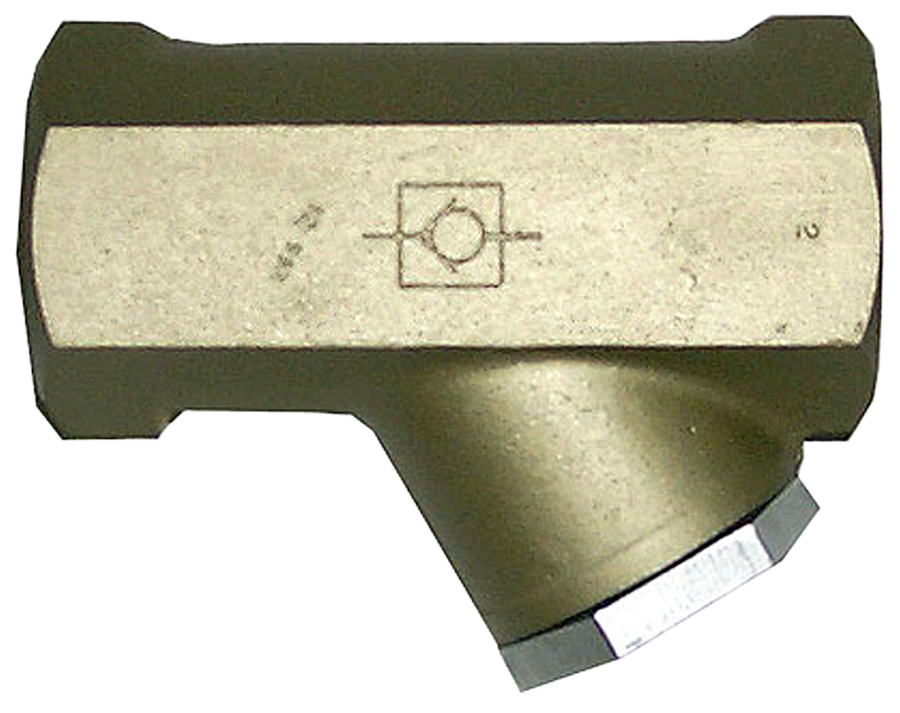

Check Valves 1968D3001
Product Code: 1968D3001
Description
• Self-cleaning poppet design tolerates dirty air
• Low cracking pressure
• Serviceable in-line
• Quiet operation due to soft-seal design
Additional information
| Actuation | Pneumatic |
|---|---|
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Application | General |
| Avg Cv | 3.7 |
| Construction | Poppet |
| Fluid Media | Filtered Air |
| Function | 2/2 |
| Height | 1.38 in (35 mm) |
| Inlet Pipe Size | 3/8" |
| Length | 2.79 in (71 mm) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Outlet Pipe Size | 3/8" |
| Pilot Supply Minimum | equal to or greater than inlet |
| Series | 19 |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Type | Check Valve |
| Weight | 0.5 lb (0.2 kg) |
| Width | 1.58 in (40 mm) |
