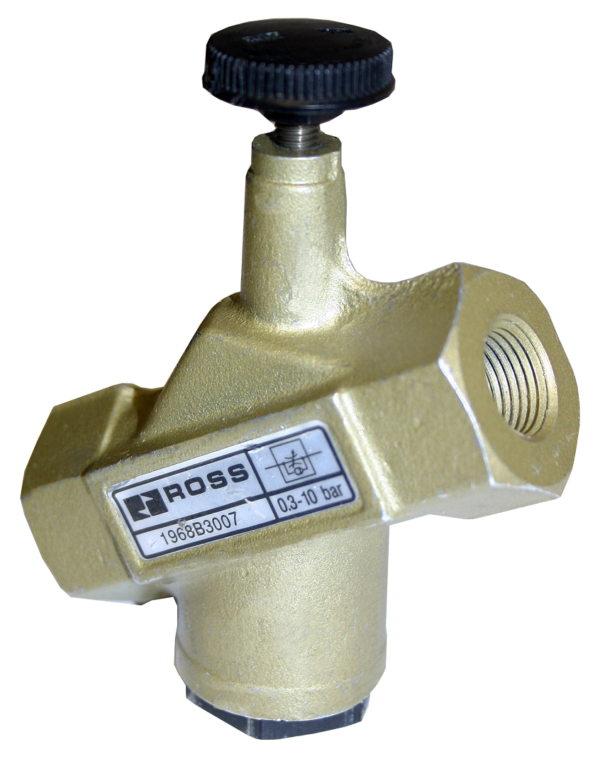

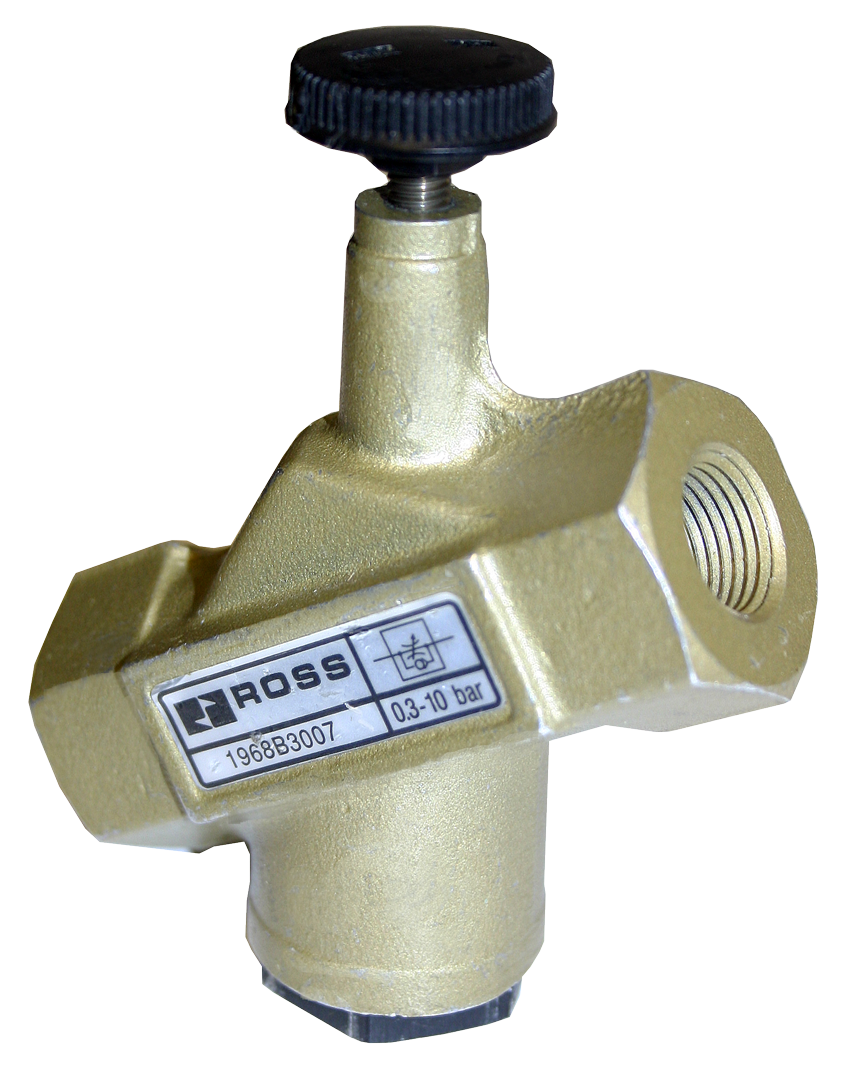

Flow Controls 1968B8007
Product Code: 1968B8007
Description
• Low profile, high capacity & right angle series available
• Available with NPT & BSPP port threads
• Low profile series includes slot & knob adjustment options
• High capacity series includes inline & offset orientation options
• Right angle series includes slot & knob adjustment options
Additional information
| Adjustment | Knob |
|---|---|
| Actuation | Pneumatic |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Application | High Capacity |
| Avg Cv | 50 |
| Construction | Poppet |
| Fluid Media | Filtered Air |
| Function | 2/2 |
| Height | 9.58 in (243 mm) |
| Inlet Pipe Size | 1-1/2" |
| Length | 6.80 in (173 mm) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Outlet Pipe Size | 1-1/2" |
| Profile | Offset |
| Series | 19 |
| Size | 2" |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Type | Flow Control Valve |
| Weight | 4.3 lb (1.9 kg) |
| Width | 3.12 in (79 mm) |
