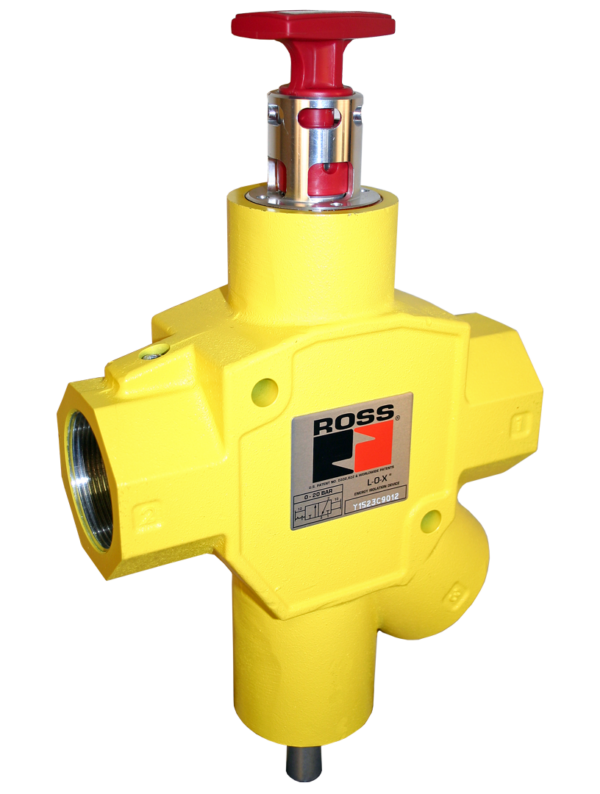

15 Series Lockout L-O-X® Valves Y1523C8002
Description
• Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
• Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
• Design only allows the valve to be lockable in the OFF (closed) position
• Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
• Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch
Additional information
| Actuation | Manual |
|---|---|
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Body Size | 2" |
| CE Certification | No |
| CSA/UL Certification | No |
| Construction | Spool |
| DGUV Certification | No |
| EAC Declaration | Yes |
| Exhaust Size | 2" |
| Fluid Media | Filtered Air |
| Function | 3/2 |
| Height | 14.82 in (376.4 mm) |
| Inlet Size | 1-1/2" |
| Length | 8.2 in (208.3 mm) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 0 to 300 psig (0 to 20.7 bar) |
| Outlet Size | 1-1/2" |
| PL Rating | PL c |
| Poppet/Spool Material | Stainless Steel |
| Ports 1-2 Flow | 36.0 Cv (35000 Nl/min) |
| Ports 1-2 Flow (Nl/min) | 35000 |
| Ports 2-3 Flow | 51.0 Cv (50000 Nl/min) |
| Ports Flow 2-3 (Nl/min) | 50000 |
| Safety Category | Category 1 |
| Seal Material | Fluorocarbon |
| Series | 15 Series High-Capacity |
| Soft Start | Not Included |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Weight | 8.3 |
| Width | 3.0 in (76.2 mm) |
