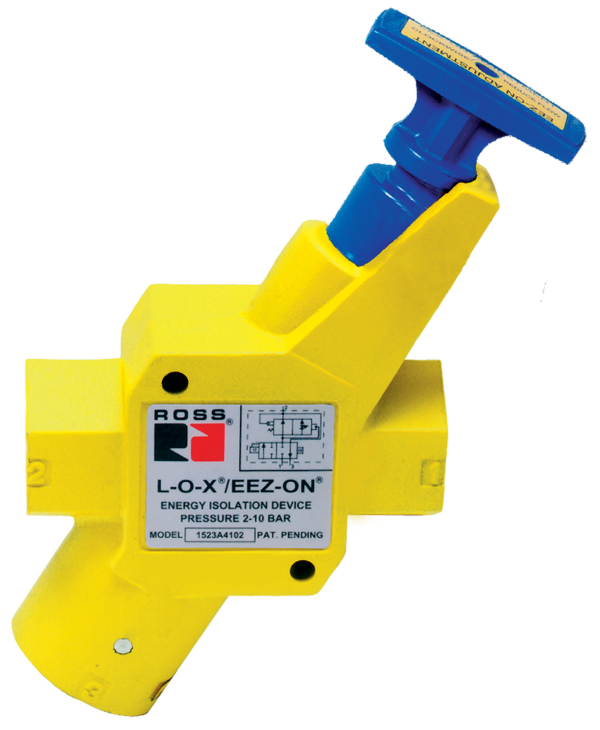

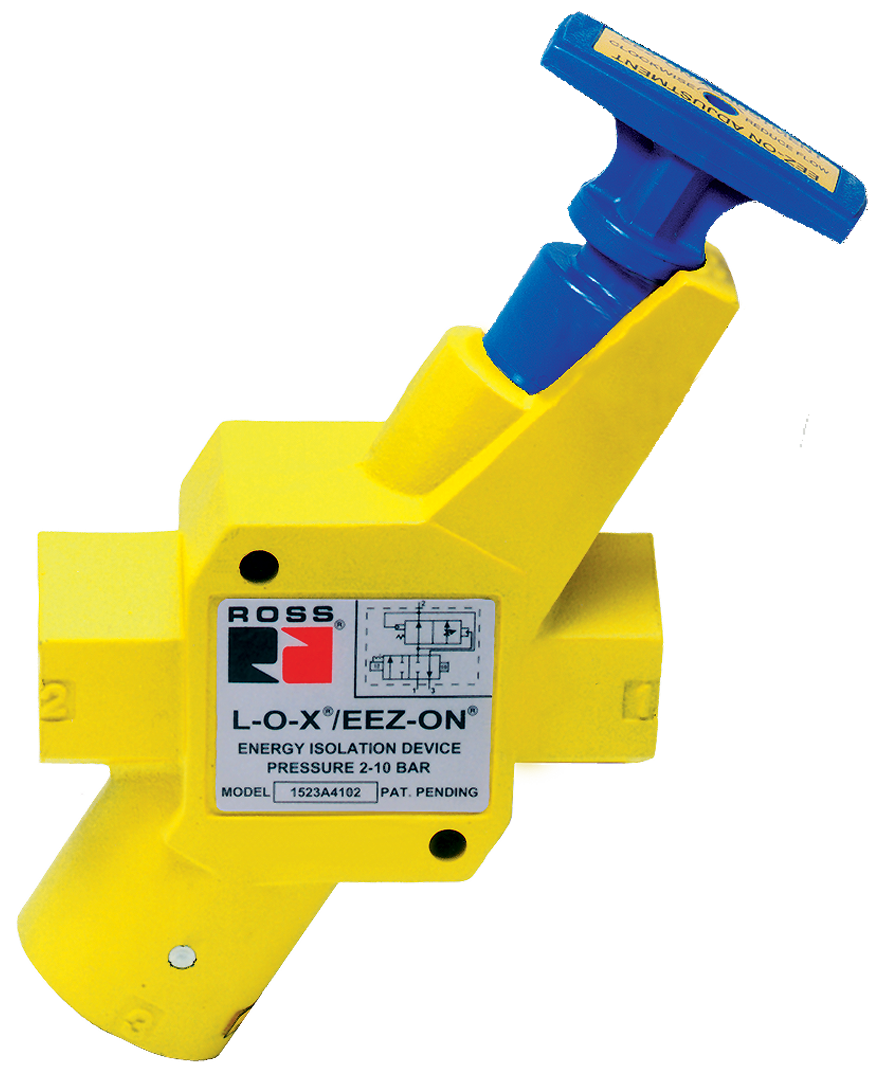

15 Series Manual Lockout L-O-X® Valves with Soft Start EEZ-ON® Y1523B6102
Description
• Easily identifiable with a yellow body and a blue handle to control ON/OFF positions
• Gradual re-application of pneumatic pressure prevents rapid equipment movement at startup
• Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
• Design only allows the valve to be lockable in the OFF position
• Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
• Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch
Additional information
| Actuation | Manual |
|---|---|
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Body Size | 1" |
| CE Certification | No |
| CSA/UL Certification | No |
| Construction | Spool |
| DGUV Certification | No |
| EAC Declaration | Yes |
| Exhaust Size | 1-1/4" |
| Fluid Media | Filtered Air |
| Function | 3/2 |
| Height | 10.76 in (273 mm) |
| Inlet Size | 1" |
| Length | 5.38 in (137 mm) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 0 to 150 psig (0 to 10 bar) |
| Outlet Size | 1" |
| PL Rating | PL c |
| Poppet/Spool Material | Stainless Steel |
| Ports 1-2 Flow | 11.0 Cv (11000 Nl/min) |
| Ports 1-2 Flow (Nl/min) | 11000 |
| Ports 2-3 Flow | 9.0 Cv (8900 Nl/min) |
| Ports Flow 2-3 (Nl/min) | 8900 |
| Safety Category | Category 1 |
| Seal Material | Fluorocarbon |
| Series | 15 Series Classic |
| Soft Start | Included |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Weight | 3 |
| Width | 2.25 in (57 mm) |
