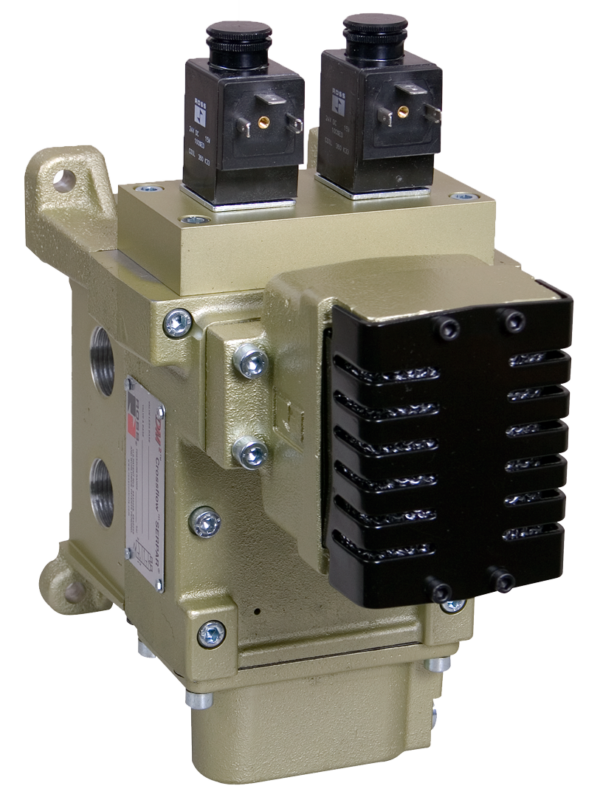

Double Valves for Clutch/Brake Control DM2DNA55A21
Product Code: DM2DNA55A21
Description
• Highly contaminant tolerant poppet construction
• High flow, clog resistant silencers
• Provides redundancy, dynamic monitoring and memory for the mechanical press industry regarding the control of pneumatically controlled clutch and brake applications
• Base mounted
Additional information
| Service Kits | 1104A30: Pressure Switch |
|---|---|
| Cv (Exhaust) | 12.6 |
| Cv (In-Out) | 4.6 |
| Inlet Side | Dual Ported Left/Right |
| Input To Main Solenoid | Independent |
| Monitor Type | Pneumatic |
| Mounting Type | Base Mount |
| Override | Without Override |
| Port Size (Exhaust) | Built in Silencer |
| Port Size (In) | 1" |
| Port Size (Out) | 1" |
| Port Thread | NPT |
| Reset | Solenoid |
| Solenoid Connection | DIN |
| Status Indicator | Pressure Switch |
| Status Indicator Connection | DIN |
| Voltage | 24 VDC |
