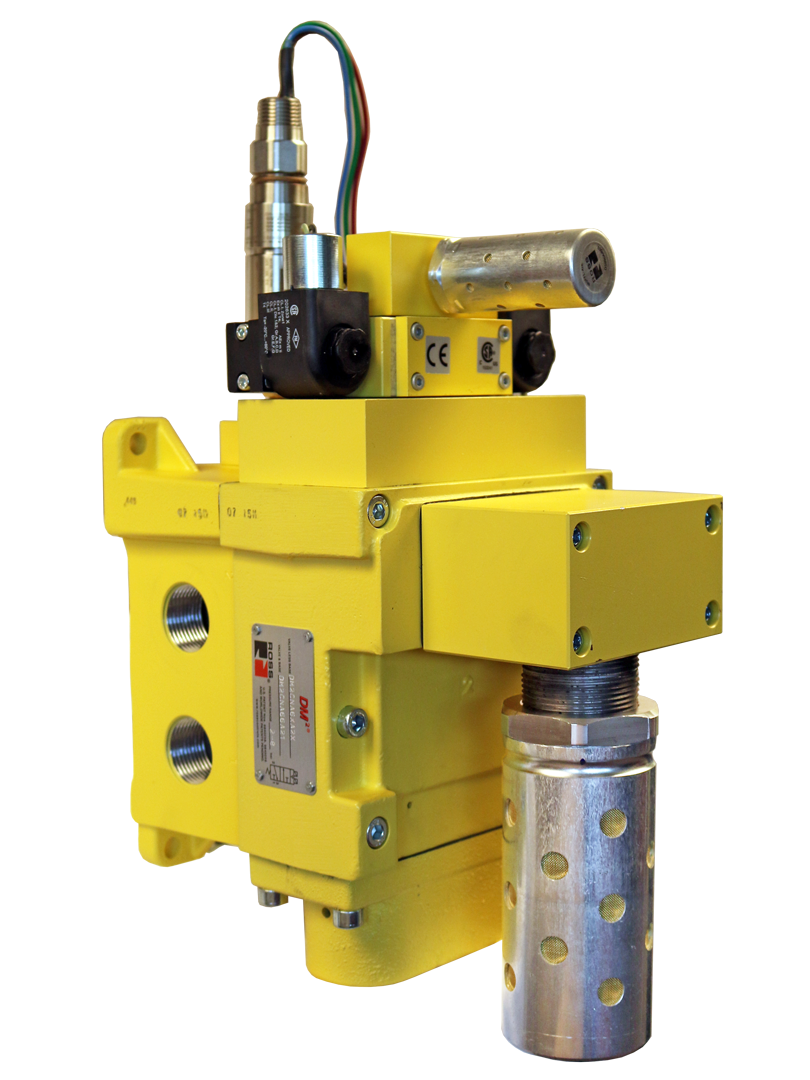

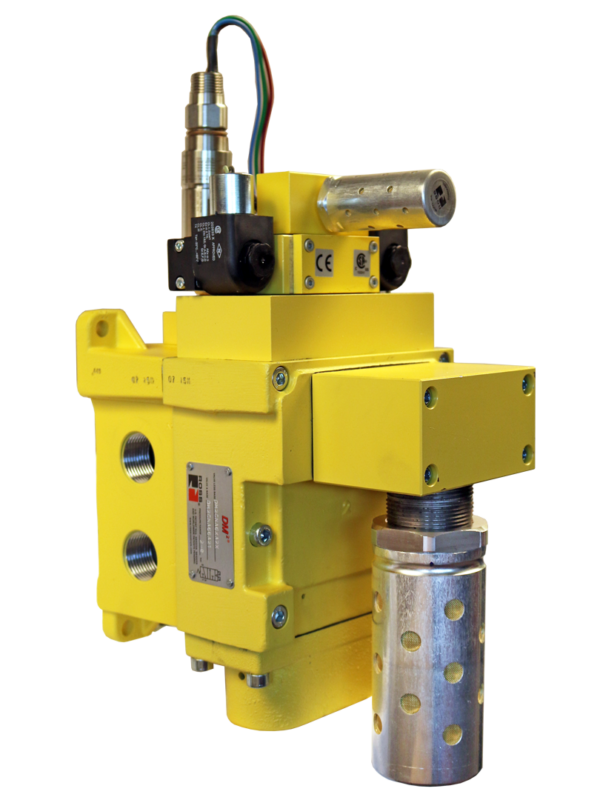

DM2 Series C Safe Exhaust Valve, Explosion Proof DM2CNB21A21019
Description
• Monitoring, and air flow control functions are simply integrated into two identical valve elements
• Asynchronous movement of valve elements is detected by the dynamic monitoring and the valve latches in the safe condition, resulting in a residual outlet pressure of less than 1% of supply
• Reset can only be accomplished by the integrated electrical (solenoid) reset; the valve cannot be reset by removing and re-applying supply pressure
• Poppet design that is dirt tolerant, wear compensating for quick response and high flow capacity
• Explosion-proof Coils contain any spark originating from within the coil or housing preventing the ignition of any flammable material in the surrounding environment, resulting in a larger explosion
• Includes a pressure switch with both normally open (NO) and normally closed (NC) contacts to provide status feedback to the control system indicating whether the valve is in the lockout or ready-to-run condition
• Inlet and outlet ports on both sides provide for flexible piping (plugs for unused ports included)
• SISTEMA Library available for download
Additional information
| Actuation | Electrical |
|---|---|
| Ambient Temperature | 15 to 122 F (-10 to 50 C) |
| Basic Size | 2 |
| CE Certification | Yes |
| Construction | Dual Poppet |
| DGUV Certification | Yes |
| EAC Declaration | Yes |
| Exhaust Size | 3/4" |
| Flow Media | Filtered, lubricated or unlubricated (mineral oils according to DIN 51519, viscosity classes 32-46) |
| Feedback | Mechanical Pressure Switch |
| Feedback Connection | EN 175301-803 Form A |
| Feedback Rating | Contacts – 0.1 A, 125/250 volts AC; 0.1 A, 30 volts DC; 0.3 A, 60 volts DC |
| Height | 10.32 in (262.2 mm) |
| Inlet Size | 3/8" |
| Length | 4.50 in (114.3 mm) |
| Lockout | Not Included |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Monitoring | Internal |
| Mounting Type | Base Mount |
| Operating Pressure | 150 psig (8.3 bar) |
| Outlet Size | 3/8" |
| PL Rating | PL e |
| Pilot Type | Internal |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Ports 1-2 Flow | 2.2 Cv (2165 Nl/min) |
| Ports 2-3 Flow | 3.6 Cv (3542 Nl/min) |
| Power Consumption | 15 watts |
| Reset | Solenoid |
| Safety Category | Category 4 |
| Safety Integrity Level | SIL 3 |
| Seal Material | Buna-N |
| Series | DM2C |
| Soft Start | Not Included |
| Solenoid Connection | 3 Lead Wires with Conduit |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Function | Redundant 3/2 Single Solenoid |
| Valve Type | Safe Exhaust – Hazardous Location |
| Voltage | 24 VDC |
| Weight | 5.3 lb (2.4 kg) |
| Width | 4.74 in (120.4 mm) |
