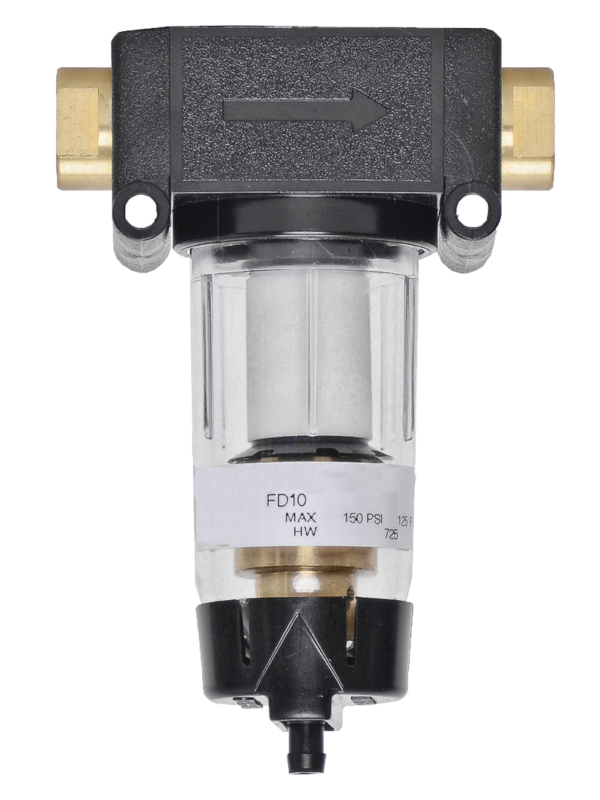

Bantam Series 5B02B0100
Product Code: 5B02B0100
Description
• Modular assembly and mounting
• Threaded ports or quick-connect fittings for tubing up to 10 mm in diameter
• High-strength polycarbonate plastic filter bowl; optional metal bowl
• Internal automatic drain; optional manual drain
Additional information
| Service Kits | 933K77: Miniature Series 5 um Filter Element |
|---|---|
| Ambient Temperature | 40 to 125 F (4 to 52 C) |
| Bowl Type | Polycarbonate |
| Drain Type | Automatic |
| Filter Material | Polyethylene |
| Filter Type | 5 µm |
| Flow Media | Compressed Air |
| Inlet Pressure Range | Up to 150 psig (10 bar) |
| Maximum Flow | 30 scfm |
| Media Temperature | 40 to 125 F (4 to 52 C) |
| Mounting Type | Modular |
| Port Size | 1/4" |
| Port Thread | NPTF |
| Port Type | Threaded Ports |
