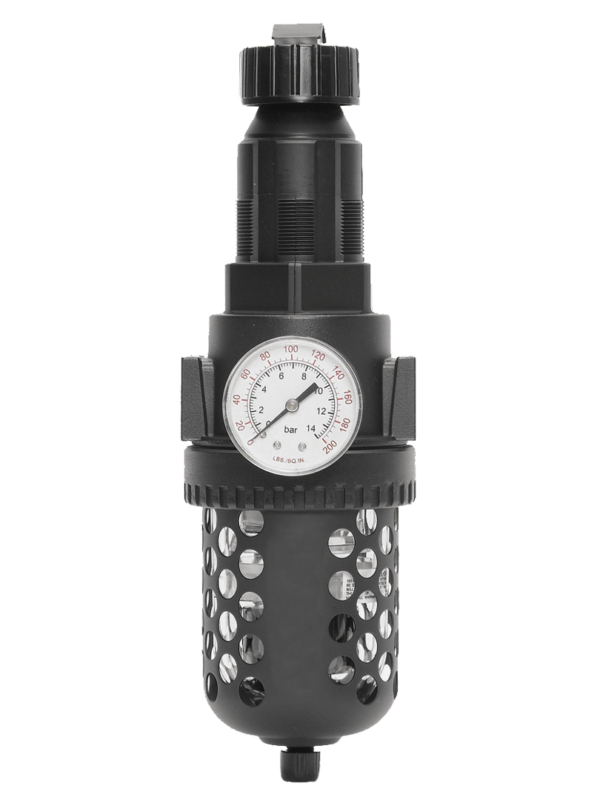

Full-Size Series 5322B4071
Product Code: 5322B4071
Description
• Filter and regulator consolidated in a single assembly
• Modular assembly and mounting
• Polycarbonate plastic filter bowl with steel shatterguard, or zinc bowl with clear nylon sight glass
• Automatic drain, manual drain, or external automatic drain
• Self-relieving piston-type regulator, or non-relieving
• Pressure adjustment locking key
• Pressure gauge
Additional information
| Adjustment | Knob |
|---|---|
| Ambient Temperature | 40 to 175 F (4 to 79 C) |
| Bowl Type | Metal |
| Construction | Piston |
| Drain Type | Automatic |
| Filter Material | Polyethylene |
| Filter Type | 5 µm |
| Flow Media | Compressed Air |
| Flow Options | Standard |
| Gauge psig (bar) | 0 – 200 (0 – 14) |
| Inlet Pressure Range | 0 to 200 psig (0 to 14 bar) |
| Maximum Flow | 180 scfm |
| Media Temperature | 40 to 175 F (4 to 79 C) |
| Mounting Type | Modular |
| Port Size | 1/2" |
| Port Thread | NPTF |
| Port Type | Threaded Ports |
| Regulated Pressure Range Psig (bar) | 0 – 125 (0 – 8.6) |
| Relieving | Self-Relieving |
