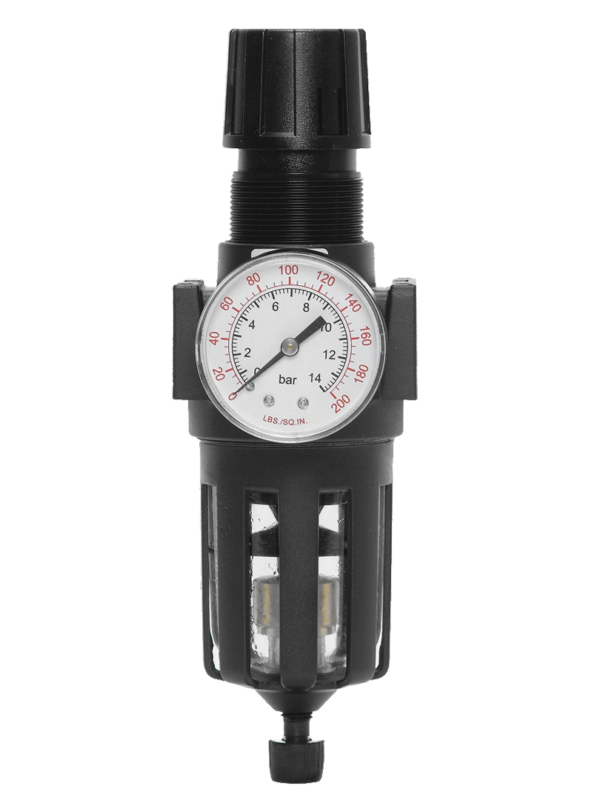

Mid-Size Series 5321B4052
Product Code: 5321B4052
Description
• Filter and regulator consolidated in a single assembly
• Modular mounting
• Polycarbonate plastic filter bowl with zinc shatterguard, or zinc bowl
• Automatic drain, or manual drain
• Self-relieving piston-type regulator, or non-relieving
• Pressure gauge
• Adjusting knob removable for tamper resistance
Additional information
| Service Kits | R-A115-106PE5: MD4 Series 5 um Filter Element |
|---|---|
| Adjustment | Knob |
| Ambient Temperature | 40 to 125 F (4 to 52 C) |
| Bowl Type | Polycarbonate |
| Construction | Piston |
| Drain Type | Automatic |
| Filter Material | Polyethylene |
| Filter Type | 5 µm |
| Flow Media | Compressed Air |
| Gauge psig (bar) | 0 – 200 (0 – 6.9) |
| Inlet Pressure Range | Up to 150 psig (Up to 10 bar) |
| Maximum Flow | 105 scfm |
| Media Temperature | 40 to 125 F (4 to 52 C) |
| Mounting Type | Modular |
| Port Size | 1/2" |
| Port Thread | NPTF |
| Port Type | Threaded Ports |
| Regulated Pressure Range Psig (bar) | 0 – 100 (0 – 6.9) |
| Relieving | Self-Relieving |
