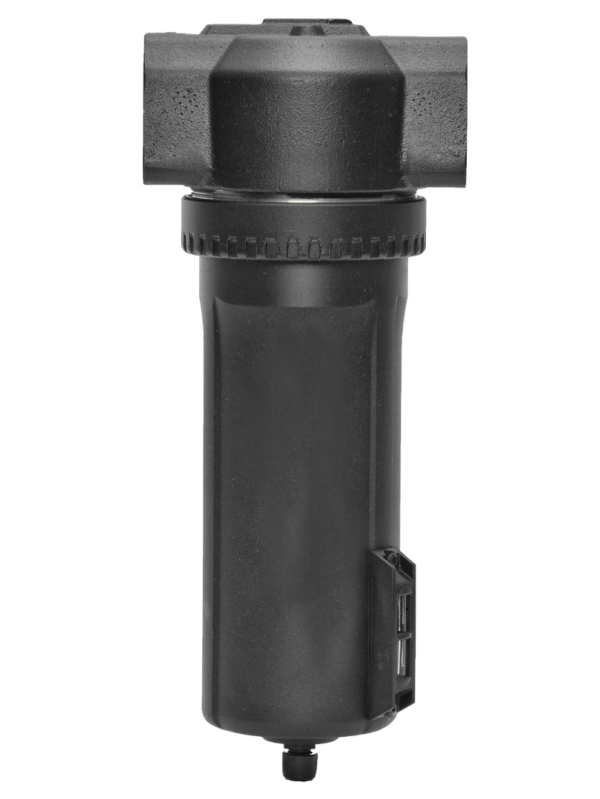

High Capacity Series 5021B6008
Product Code: 5021B6008
Description
• Inline mounting
• High-strength polycarbonate plastic filter bowl with steel shatterguard, metal bowl with clear nylon sight glass
• Optional differential pressure gauge
• Internal automatic drain, manual drain, or external automatic drain
Additional information
| Service Kits | 1010K77: High-Capacity Series 5 um Filter Element |
|---|---|
| Ambient Temperature | 40 to 125 F (4 to 52 C) |
| Bowl Type | Polycarbonate |
| Drain Type | Automatic |
| Filter Material | Polyethylene |
| Filter Type | 5 µm |
| Flow Media | Compressed Air |
| Inlet Pressure Range | Up to 150 psig (10 bar) |
| Maximum Flow | 275 scfm |
| Media Temperature | 40 to 125 F (4 to 52 C) |
| Mounting Type | In-line |
| Port Size | 1" |
| Port Thread | NPTF |
| Port Type | Threaded Ports |
