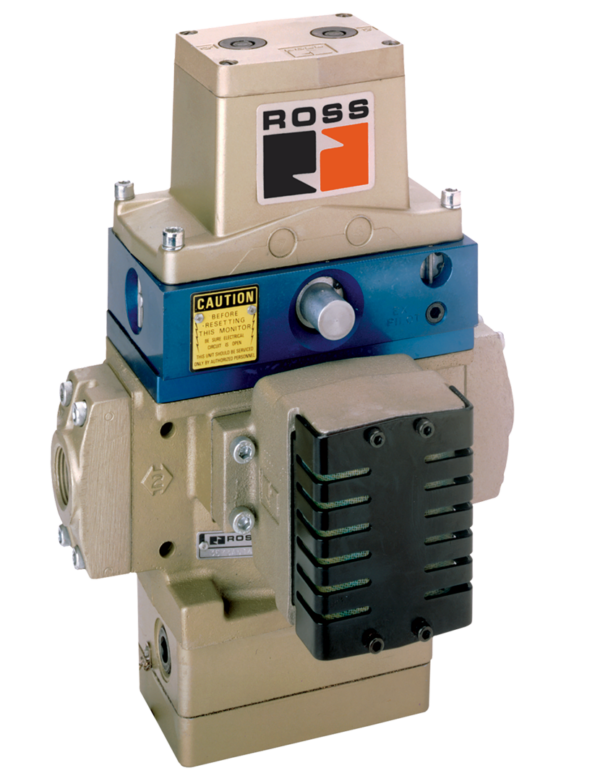

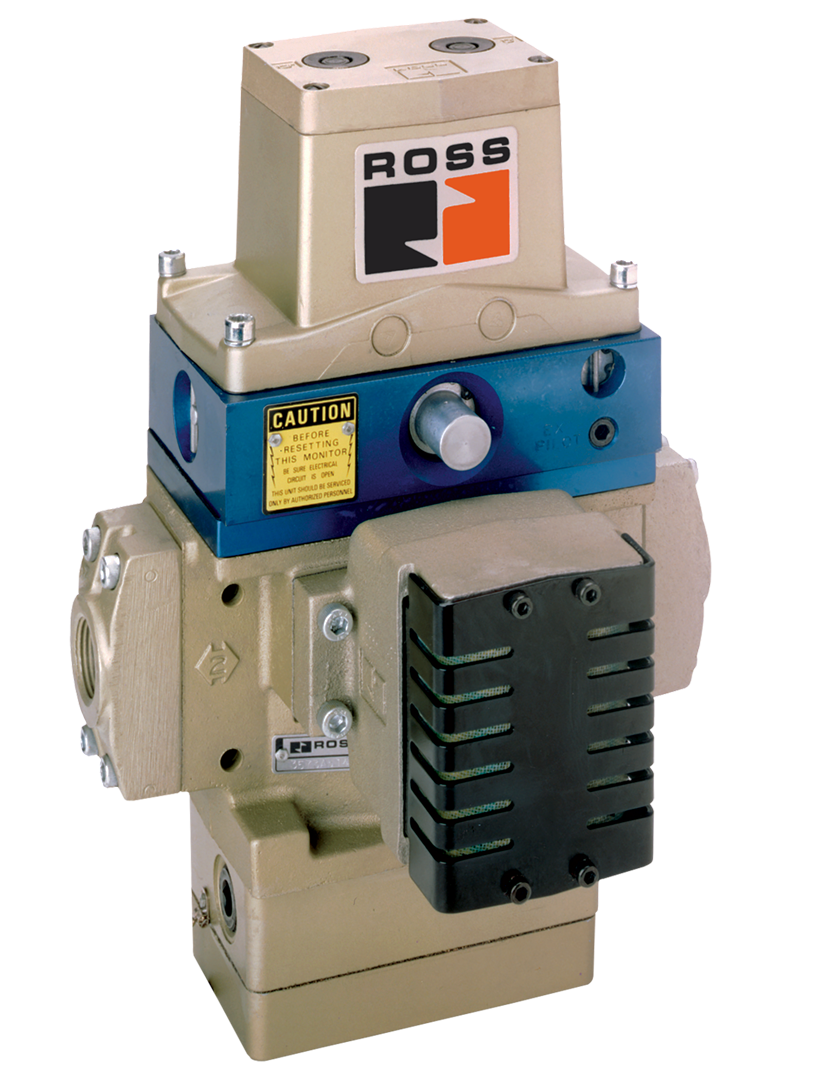

Double Valves with Pneumatic L-G Monitor, Ports 1/2 to 2 3573A4142W
Double Valves with Pneumatic L-G Monitor, Ports 1/2 to 2 3573A4142W
Description
• Internal monitoring – requires no additional monitoring circuitry
• Automatic lock-out/inhibit upon detection of a malfunction
• Default to de-energized position upon fault detection
• Dedicated reset function
• No undesired automatic reset upon removal of electrical or pneumatic energy sources
• Built-in non-clogging silencers
Additional information
| Service Kits | 411B0416: 24 VDC Solenoid Coil |
|---|---|
| Cv (Exhaust) | 8.5 |
| Cv (In-Out) | 3.5 |
| Inlet Side | Right Side |
| Input To Main Solenoid | Dual |
| Monitor Type | Pneumatic |
| Mounting Type | In-line |
| Override | With Override |
| Port Size (Exhaust) | Built in Silencer |
| Port Size (In) | 1/2" |
| Port Size (Out) | 1/2" |
| Port Thread | NPT |
| Reset | Air Signal |
| Solenoid Connection | Terminal Strip |
| Status Indicator | Port Available |
| Status Indicator Connection | Pneumatic Port |
| Voltage | 24 VDC |
