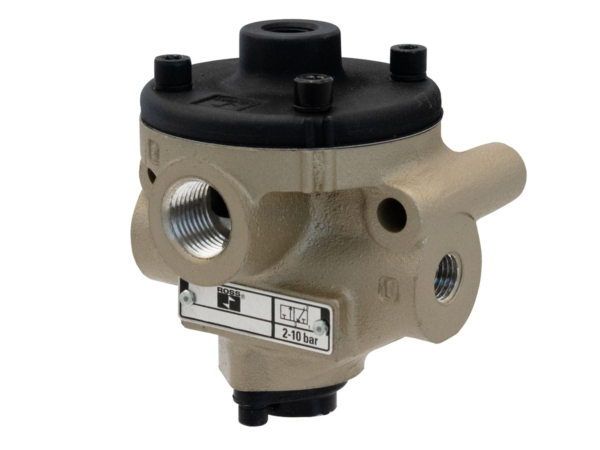

Standard Temperatures [Classic 27 Series] 2753A4001
![Standard Temperatures [Classic 27 Series] 2753A4001](https://spartanindustrial.com/wp-content/uploads/sites/13/2025/08/21-27_Series_PrC_3-2_sm-1.png)
Product Code: 2753A4001
Description
• Poppet valves
• Inline mounted
• High Flow Rate
• Internal or external; easily field-convertible for use with an external pilot supply
• Consistent response time over the life of the valve
Additional information
| Service Kits | 496K87: 3/4 BAS 3W NC VBA SER KIT 27 |
|---|---|
| Actuation | Pneumatic |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Application | General |
| Construction | Poppet |
| Cv (1-2) | 6.3 |
| Cv (2-3) | 9.2 |
| Default Position | Normally Closed |
| Exhaust Pipe Size | 1" |
| Fluid Media | Filtered Air |
| Function | 3/2 Single Pilot |
| Height | 4.73 in (120 mm) |
| Inlet Pipe Size | 1/2" |
| Length | 4.45 in (113 mm) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Outlet Pipe Size | 1/2" |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Pilot Type | External |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Return | Spring |
| Seal Material | Buna-N |
| Series | 27 |
| Size | 3/4" |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Type | Directional Control |
| Weight | 2.0 lb (0.9 kg) |
| Width | 3.59 in (91 mm) |
