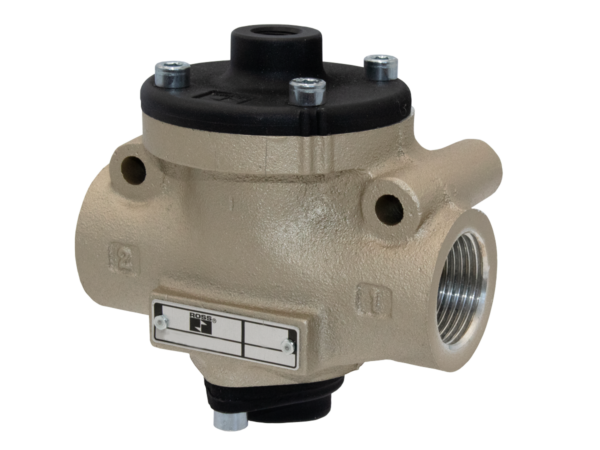

Standard Temperatures [Classic 27 Series] 2751A9001

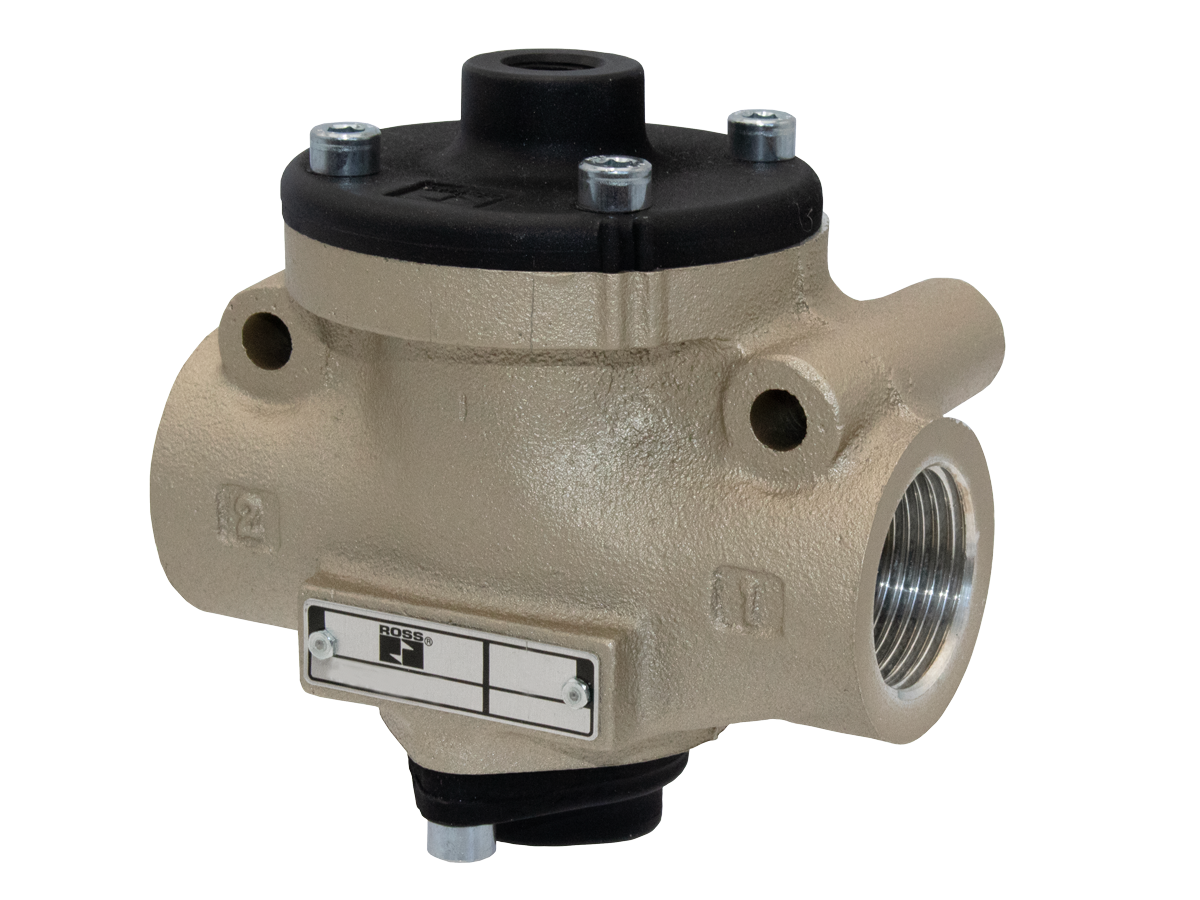

![Standard Temperatures [Classic 27 Series] 2751A9001](https://spartanindustrial.com/wp-content/uploads/sites/13/2025/08/21-27_Series_PrC_2-2_lg-1.png)
Product Code: 2751A9001
Description
• Poppet valves
• Inline mounted
• High Flow Rate
• Internal or external; easily field-convertible for use with an external pilot supply
• Consistent response time over the life of the valve
Additional information
| Actuation | Pneumatic |
|---|---|
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Application | General |
| Avg Cv | 57 |
| Construction | Poppet |
| Default Position | Normally Closed |
| Fluid Media | Filtered Air |
| Function | 2/2 Single Pilot |
| Height | 8.95 in (227 mm) |
| Inlet Pipe Size | 2" |
| Length | 8.62 in (219 mm) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 30 to 150 psig (2 to 10 bar) |
| Outlet Pipe Size | 2" |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Pilot Type | External |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Return | Spring |
| Seal Material | Buna-N |
| Series | 27 |
| Size | 2" |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Type | Directional Control |
| Weight | 14.3 lb (6.4 kg) |
| Width | 5.13 in (130 mm) |
