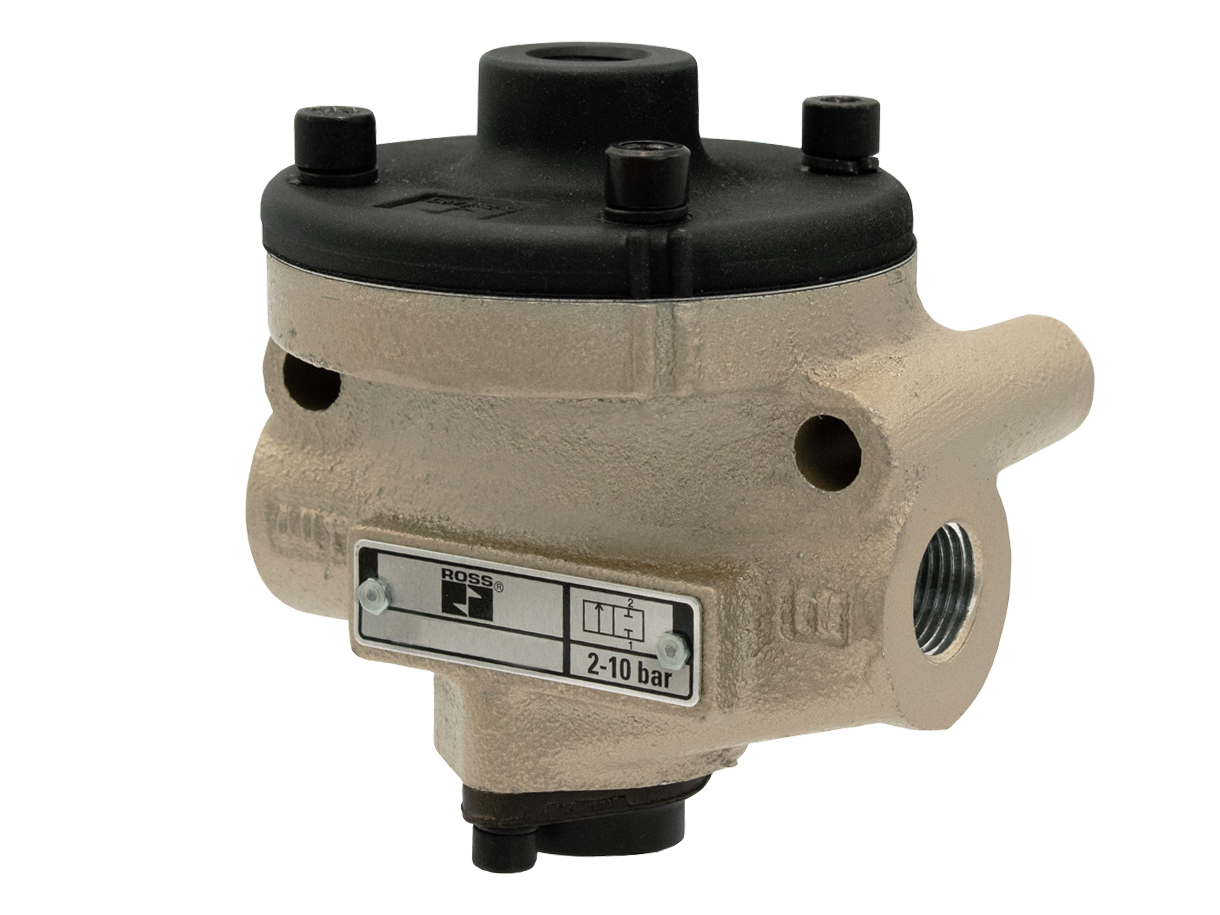

Standard Temperatures [Classic 27 Series] 2751A4011
![Standard Temperatures [Classic 27 Series] 2751A4011](https://spartanindustrial.com/wp-content/uploads/sites/13/2025/08/21-27_Series_PrC_2-2_sm-1.webp)
Description
• Poppet valves
• Inline mounted
• High Flow Rate
• Internal or external; easily field-convertible for use with an external pilot supply
• Consistent response time over the life of the valve
Additional information
| Service Kits | 501K87: 3/8 BAS 2W NC VBA SER KIT 27 |
|---|---|
| Actuation | Pneumatic |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Application | General |
| Avg Cv | 4 |
| Construction | Poppet |
| Default Position | Normally Closed |
| Fluid Media | Filtered Air |
| Function | 2/2 Single Pilot |
| Height | 3.71 in (94 mm) |
| Inlet Pipe Size | 1/2" |
| Length | 3.56 in (90 mm) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Outlet Pipe Size | 1/2" |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Pilot Type | External |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Return | Spring |
| Seal Material | Buna-N |
| Series | 27 |
| Size | 3/8" |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Type | Directional Control |
| Weight | 1.3 lb (0.6 kg) |
| Width | 3.11 in (79 mm) |
