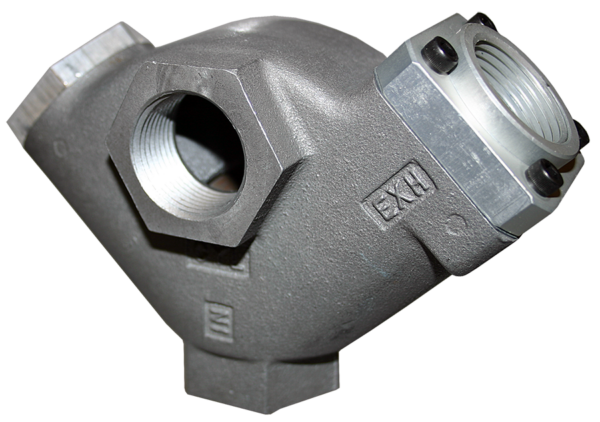

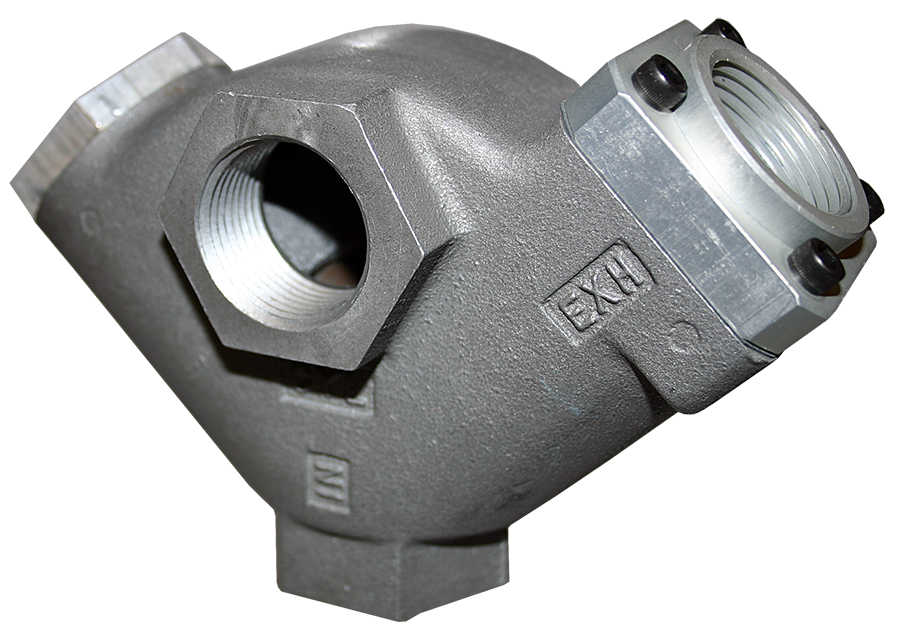

Quick Exhaust Valves 1868A4005
Product Code: 1868A4005
Description
• Inline Mounting
• Poppet Construction
• Quick Cylinder Reversal
Additional information
| Actuation | Pneumatic |
|---|---|
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Application | General |
| Construction | Poppet |
| Cv (1-2) | 2.9 |
| Cv (1-4) | 3.4 |
| Exhaust Pipe Size | 1/2" |
| Fluid Media | Filtered Air |
| Function | 3/2 |
| Height | 3.19 in (81 mm) |
| Inlet Pipe Size | 1/2" |
| Length | 4.69 in (119 mm) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Mounting Type | In-line |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Outlet Pipe Size | 1/2" |
| Series | 18 |
| Size | 1/2" |
| Thread Type | NPT |
| Valve Body Material | Cast Aluminum |
| Valve Type | Quick Exhaust Valve |
| Weight | 1.0 lb (0.5 kg) |
| Width | 2 in (51 mm) |
